Tension Controller
The TC950 tension controller accepts a 0-50mV tension signal and provides analog, PWM, single-phase or three-phase phase-shifting outputs for high-precision constant tension, speed tracking, winding/unwinding and power-unit control.
Technical Detail
The TC950 tension controller is designed for high-precision constant tension control. It accepts a 0-50mV tension input, runs PID control, and provides analog, PWM, single-phase or three-phase phase-shifting outputs for power units and drive systems.

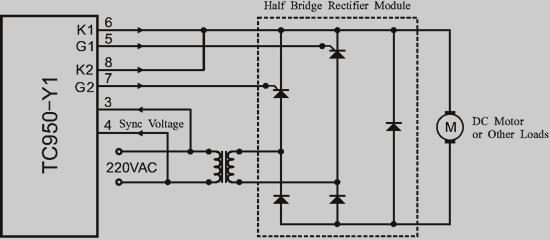

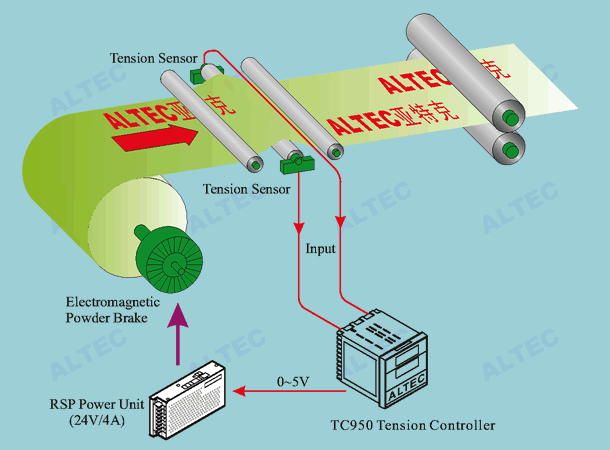

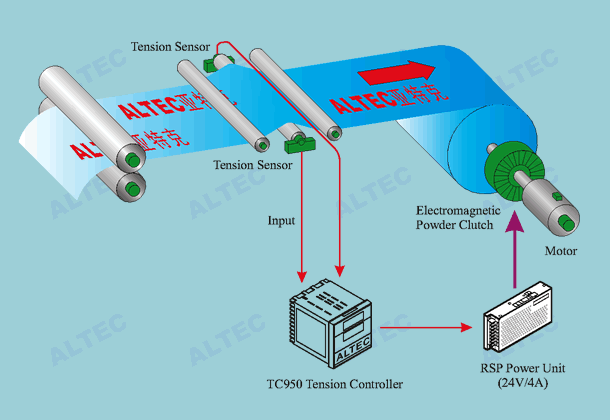

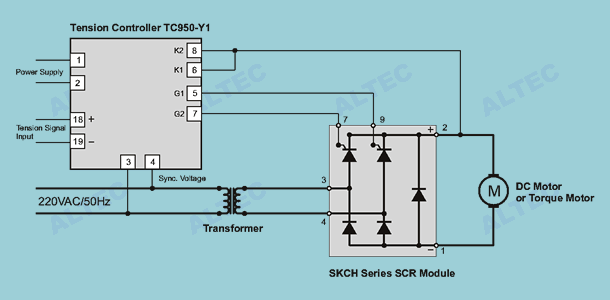

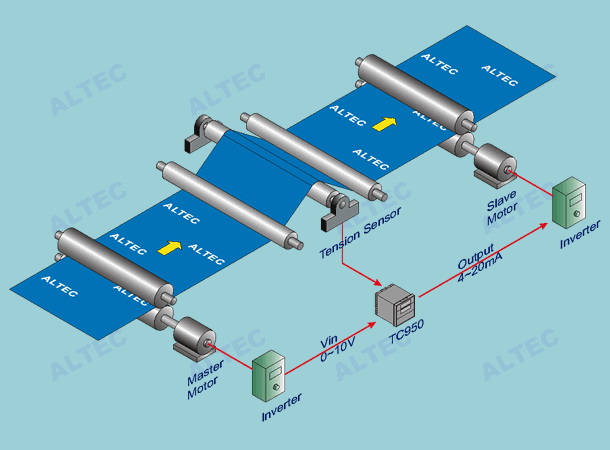

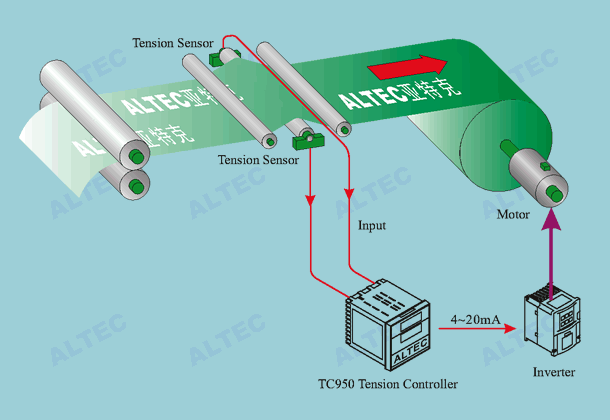

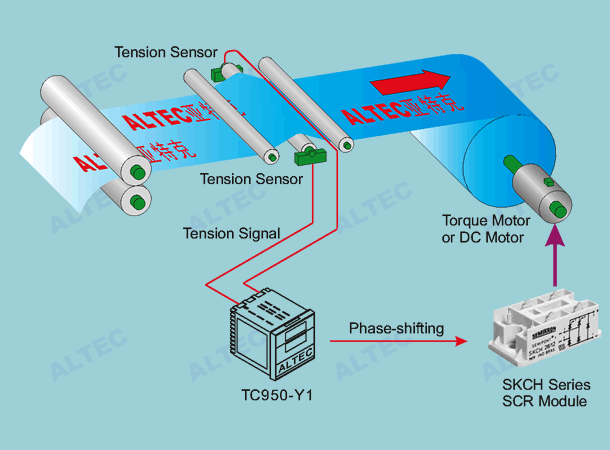

Typical systems include winding and unwinding sections, RSP power units, SKCH SCR modules, inverters and torque-motor modules. Automatic/manual operation, synchronous tracking, zero-tension alarm and optional communication or tension transmission are supported.
| TC950 | - | Main output | - | Communications |
| (1) | (2) |

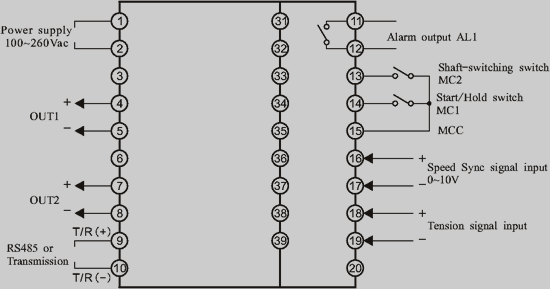

| A420 | 4-20mA output |
|---|---|
| V10 | 0-10V output |
| V05 | 0-5V output |
| PWM | Pulse-width modulation output |

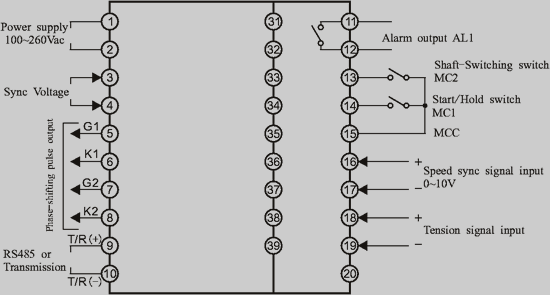

| Y1 | Single-phase phase-shifting output |
| Y3 | Three-phase phase-shifting output |
| 0 | None |
|---|---|
| RS232 | RS232, 3 wire, communication distance up to 15m |
| RS485 | RS485, 2 wire, communication distance up to 1.2km |
| BS | Tension transmission output |
Examples: TC950-A420-0, TC950-V10-0.
For phase-shifting output, specify the power frequency when it is not 50Hz.

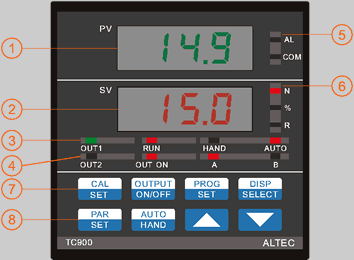

| PV display | Indicates the process value and abbreviated parameter names. |
|---|---|
| SV display | Indicates the setting value, parameter value or alarm code. |
| Status indicators | OUT1, OUT2, RUN, HAND, AUTO, OUT ON, A/B shaft running, alarm and communication indicators. |
| Operation keys | CAL/SET, OUTPUT ON/OFF, PROG/SET, DISP/SELECT, PAR/SET, AUTO/HAND, increase and decrease keys. |
| Lower status display | N indicates tension setpoint, % indicates output power, and R indicates synchronous speed. |
| Accuracy | ±0.2% FS ±1 digit |
|---|---|
| Sample rate | 100 ms |
| Tension signal input | 0-50mV |
| Output | Analog: 4-20mA, 0-20mA, 0-10V PWM output Single-phase phase-shifting output Three-phase phase-shifting output |
| Alarm | Zero-tension alarm; relay output, normally open, max. 250VAC / 3A |
| Control algorithm | PID, proportional, integral and derivative control. |
| Communications | RS-232 and RS-485 |
| Displays | Upper 4-digit high-brightness green LED, lower 4-digit high-brightness red LED and LED indicators. |
| Power supply | 100-240VAC, 50/60Hz |
| Environment | Ambient temperature 0-50°C, humidity ≤85% |

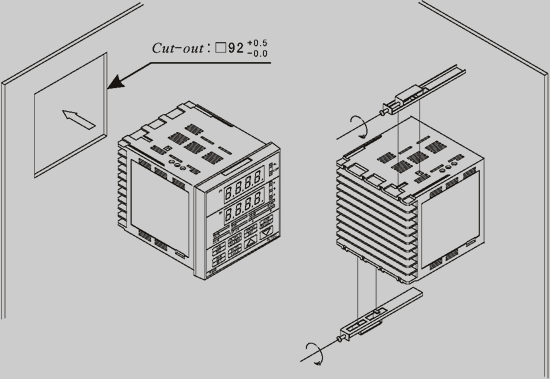

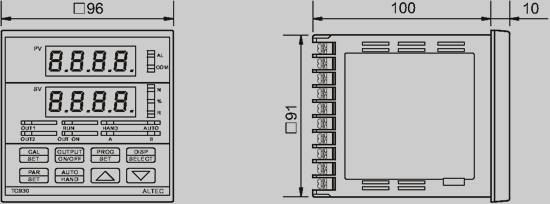

| Dimensions | 96(W) × 96(H) × 100(D) mm |
